SMC 1100ZH/1500ZH/1700ZH
Servo Precision Double Helix High Speed Sheet Cutter Machine With Auto Splicer&Auto Pallet Changer
Features Introduced
Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.
Partial Introduction
Auto splicer
Auto pallet changer
Non-stop rolling curtain paper delivery device
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1100ZH/1500ZH/1700ZH |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330 m/min |
| Max. cutting speed | 540 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 25000/27000/30000kgs |
| Full-load power | 81/94/94kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 125 | 275 |
| 500 | 160 | 315 |
| 600 | 210 | 350 |
| 650 | 250 | 380 |
| 700 | 290 | 410 |
| 750 | 330 | 440 |
| 800 | 330 | 410 |
| 900 | 330 | 365 |
| 1000 | 330 | 330 |
| 1100 | 310 | 280 |
| 1200 | 300 | 250 |
| 1300 | 300 | 230 |
| 1400 | 300 | 210 |
| 1500 | 300 | 195 |
| 1600 | 300 | 188 |
| 1650 | 300 | 185 |

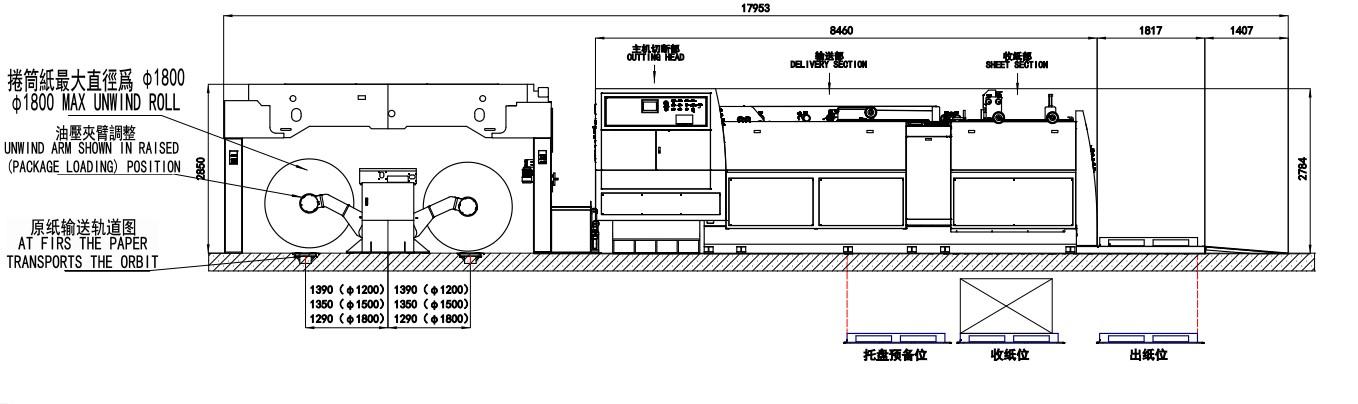

Drawing
