Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

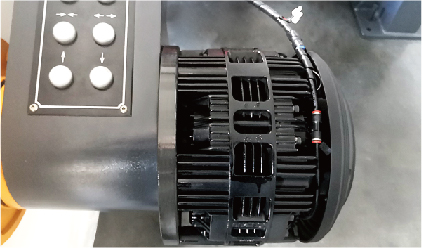

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

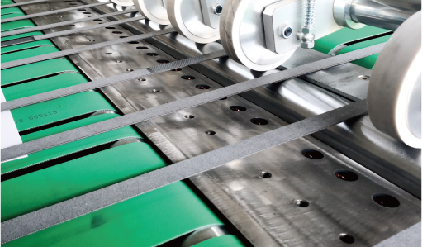

Auto positioning slitting system

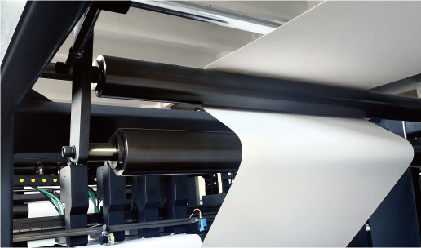

Paper pre-press device

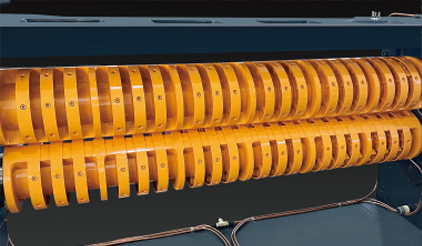

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

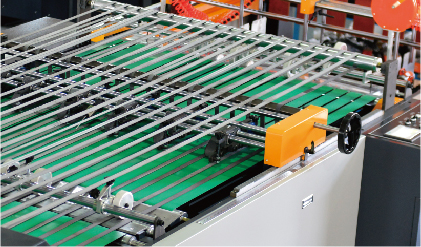

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight21000/23000/26000kgs
Full-load power75/88/88kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

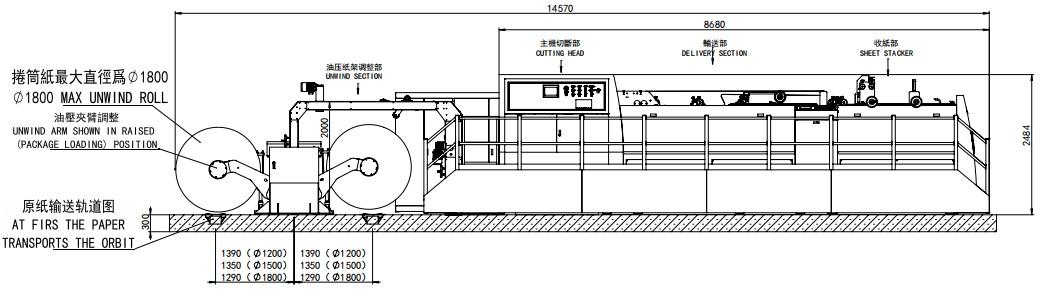

Drawing

]]> SMC 1900 http://m.jxzhifu.com/en/?p=983 Wed, 07 Oct 2020 20:00:56 +0000 http://m.jxzhifu.com/?p=983

Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight28000kgs
Full-load power106kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

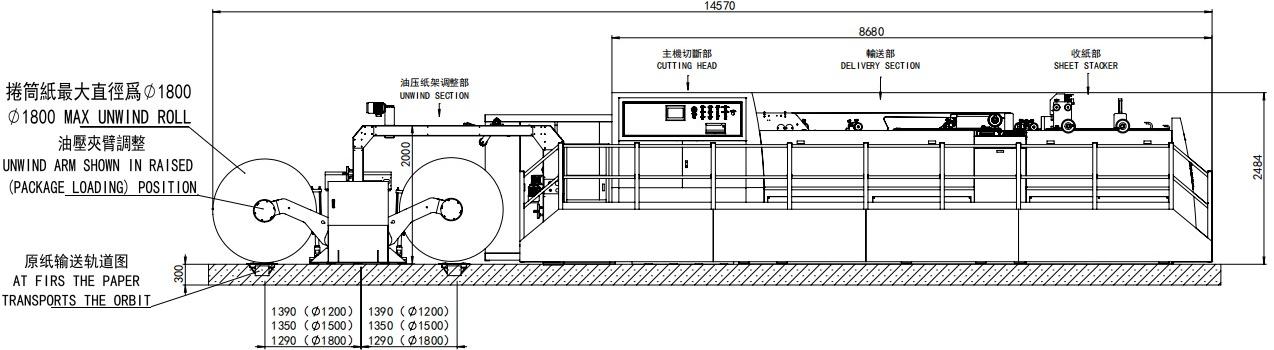

Drawing

]]> SMC-1100H/1500H/1700H http://m.jxzhifu.com/en/?p=12362 Thu, 10 Jul 2025 01:23:11 +0000 http://m.jxzhifu.com/en/?p=12362

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100H/1500H/1700H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight23000/25000/28000kgs
Full-load power78/91/91kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

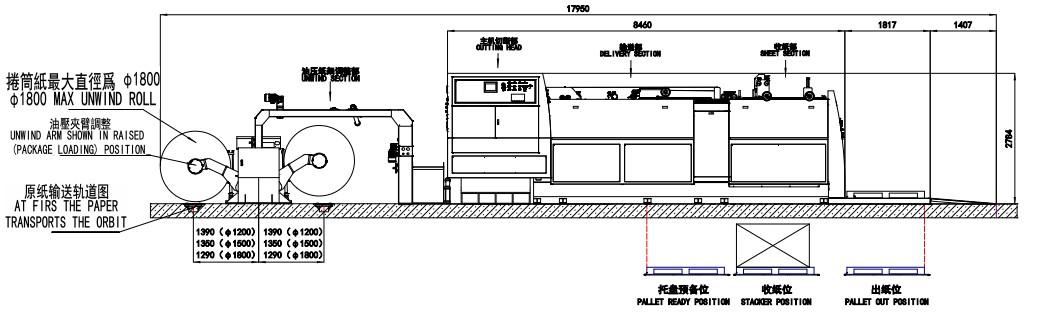

Drawing

]]> SMC-1900H http://m.jxzhifu.com/en/?p=12371 Thu, 10 Jul 2025 01:27:35 +0000 http://m.jxzhifu.com/en/?p=12371

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight30000kgs
Full-load power109kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

]]> SMC 1100ZH/1500ZH/1700ZH http://m.jxzhifu.com/en/?p=5651 Sat, 11 Sep 2021 01:54:15 +0000 http://m.jxzhifu.com/en/?p=5651

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100ZH/1500ZH/1700ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight25000/27000/30000kgs
Full-load power81/94/94kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

]]> SMC 1900ZH http://m.jxzhifu.com/en/?p=967 Wed, 07 Oct 2020 19:48:08 +0000 http://m.jxzhifu.com/?p=967

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight32000kgs
Full-load power112kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

]]> SMC-1100 http://m.jxzhifu.com/en/?p=7507 Mon, 28 Aug 2023 10:44:29 +0000 http://m.jxzhifu.com/en/?p=7507

Features Introduced

SMC-1100 Cigarette Packing Servo Precision Double-Helix High Speed Sheet Cutter Machine With Photoelectric Tracking is a high-precision and efficient sheet cutter equipment developed by our company.This machine adopts several edge position correction function,embedded double-helix design, non-stop rolling curtain paper delivery device, is easy to operate.The photoelectric tracking cutting accuracy is within ≤± 0.1mm,the edge of cutting paper is smooth without crude or powder.It is the most ideal photoelectric tracking sheet cutting machine in cigarette packing printing industry at present.

Partial Introduction

Slitting system

Photoelectric tracking system

3 times delivery (No impression line)

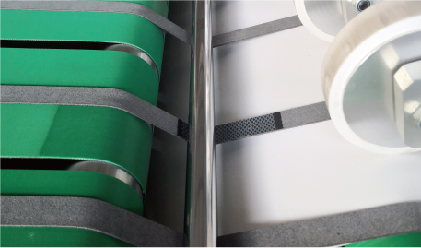

Non-stop rolling curtain paper delivery device

Main Technical Parameter

ModelSMC-1100
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1450mm
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. photoelectric tracking cutting meter speed150m/min
Max. photoelectric tracking cutting speed220cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
Max. paper piling height1400mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W.18000kgs
Full-load Power75kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210

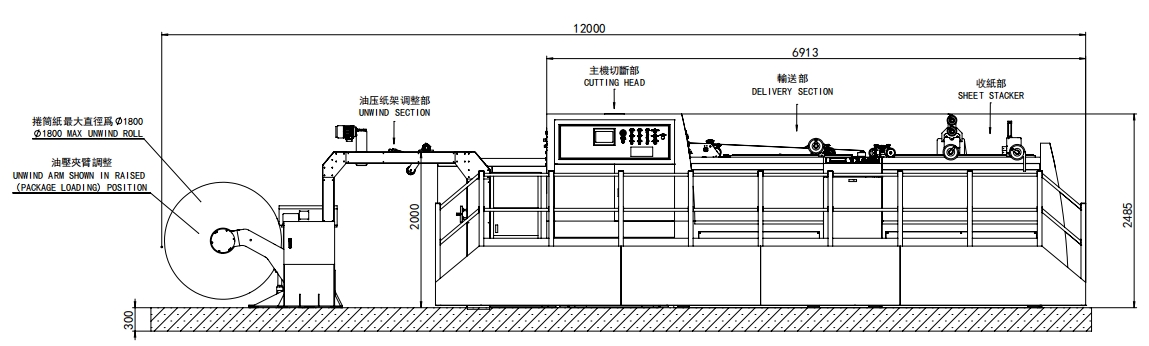

Drawing

]]> SM 1100/1500/1700 http://m.jxzhifu.com/en/?p=5679 Sat, 11 Sep 2021 02:17:35 +0000 http://m.jxzhifu.com/en/?p=5679

Features Introduced

SM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Auto anti curve

Auto edge position correction

Three sets of slitting knife are used for trimming and middle slitting

Embedded double helix knife(invention patent)

Anti-static device

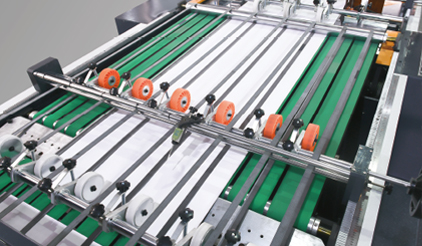

Conveying unit

Main Technical Parameter

ModelSM-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight18000/20000/23000kgs
Full-load power69/82/82kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
550190350
600210350
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

Double Roll

Four Rolls

]]> SM 1900 http://m.jxzhifu.com/en/?p=1038 Thu, 08 Oct 2020 09:40:01 +0000 http://m.jxzhifu.com/?p=1038

Features Introduced

SM-1900 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Auto anti curve

Auto edge position correction

Three sets of slitting knife are used for trimming and middle slitting

Embedded double helix knife(invention patent)

Anti-static device

Conveying unit

Main Technical Parameter

ModelSM-1900
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight25000kgs
Full-load power100kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

Double Roll

Four Rolls

]]> KMC-1100/1500/1700 http://m.jxzhifu.com/en/?p=9474 Tue, 13 May 2025 05:37:31 +0000 http://m.jxzhifu.com/en/?p=9474

Features Introduced

KMC-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Embedded double helix knife(invention patent)

Auto positioning slitting system

3 times delivery (No impression line)

Non-stop rolling curtain paper delivery device

Main Technical Parameter

ModelKMC-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precision (1 roll)Cutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. scroll diameter1500mm(KMC-1100)
1800mm(KMC-1500/1700)
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W. (1 roll)18000/20000/23000kgs
Full-load Power75/88/88kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210
1650335210

Drawing

KMC-1500

KMC-1700

]]> KM-1100/1500/1700 http://m.jxzhifu.com/en/?p=7520 Mon, 28 Aug 2023 10:56:35 +0000 http://m.jxzhifu.com/en/?p=7520

Features Introduced

KM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Embedded double helix knife (Invention patent)

Slitting knifes (Optional)

Conveying unit

Main Technical Parameter

ModelKM-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting1 sheet(Optional)
Cutting precision (1 roll)Cutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. scroll diameter1500mm(KM-1100)
1800mm(KM-1500/1700)
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W. (1 roll)16000/18000/21000kgs
Full-load Power69/82/82kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210
1650335210

Drawing

KM-1100

]]> GM 1100/1500/1700/1900 http://m.jxzhifu.com/en/?p=1043 Thu, 08 Oct 2020 10:19:40 +0000 http://m.jxzhifu.com/?p=1043

Features Introduced

GM-1100/1500/1700/1900 Servo Precision High Speed Sheet Cutter apply the advanced techinque of Germany and England. The machine computer control system apply servo motor and AC transducer which are both international of top brand. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland. The electrical system adopts MOELLER&OMRON. The speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touchscreen makes the operation easy. The anti-curve rack assurethe paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benifit of your work.

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Main Technical Parameter

ModelGM-1100/1500/1700/1900
Model of cutting paperThe up knife cut reciprocally and the down knife is fixed
Thickness of cutting paper60-550GSM
Cutting length range450-1600mm
The format of slitting2 sheet
Cutting precisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. cutting meter speed350m/min
Max. cutting speed400cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100mm/1500mm/1700mm/1900mm
Max. paper piling height1500mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
Gross weight11000kgs/13000kgs/15000kgs/17000kgs
Full-load Power22/26/30/35kw
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Equipment of electrostatic elimination1SET
Middle slitting and waste collection system1SET
Automatic counting and label inserting equipment1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Double arm oil pressure shaftless mill roll stand1SET
Automatic directing and paper tension controller1SET
Equipment of automatic vacuum1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

Double Roll

Four Rolls

]]> CM 1100A/1500A/1700A/1900A http://m.jxzhifu.com/en/?p=1051 Thu, 08 Oct 2020 13:35:02 +0000 http://m.jxzhifu.com/?p=1051

Features Introduced

CM-1100/1500/1700/1900A Servo Precision Sheet Cutter apply the advanced technique of Germany and England. The computer control system apply AC servo motor and AC transducer. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINOLEVA from Switzerland. The electrical system adopts MOELLER&OMRON, the speed of cutting paper is fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touch screen makes the operation easy. The anticurve rack assures the paper flat. The machine is very popular in the paper making and printing industry.

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting1 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight9000kgs/11000kgs/13000kgs/15000kgs
Full-load Power22/26/30/35KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> CM 1100A/1500A/1700A/1900A http://m.jxzhifu.com/en/?p=2125 Sat, 14 Nov 2020 10:49:02 +0000 http://m.jxzhifu.com/?p=2125

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting2 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight11000kgs/13000kgs/15000kgs/17000kgs
Full-load Power26/30/34/39KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> CM 1100A/1500A/1700A/1900A http://m.jxzhifu.com/en/?p=1063 Thu, 08 Oct 2020 13:46:17 +0000 http://m.jxzhifu.com/?p=1063

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting4 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight13000kgs/15000kgs/17000kgs/19000kgs
Full-load Power31/35/39/44KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> CM 1100A/1500A/1700A/1900A http://m.jxzhifu.com/en/?p=1065 Thu, 08 Oct 2020 13:55:22 +0000 http://m.jxzhifu.com/?p=1065

Partial Introduction

Photoelectric tracking system

Edge posltion controller system

Fast sheet cutter

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550g
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Cutting Length Range450-1650mm
The format of slitting1 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1%
Max. Cutting Speed300cuts/min
Max. Cutting Meter Speed300m/min
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight9000kgs/11000kgs/13000kgs/15000kgs
Full-load Power22/26/30/35KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> 色妞欧美| 久久高清内射无套 | 天堂在线www | 欧美黄色小说 | 五月天婷婷丁香 | 少妇又白又嫩又色又粗 | 国产精品第2页 | 色婷婷六月| 一级日韩片 | 日韩精品一区二区电影 | 免费在线观看不卡av | 我要看免费黄色片 | 国产亚洲精品美女 | 99久久精品久久久久久清纯 | 添女人荫蒂视频 | 国产精品1234| 一级黄色片大全 | 在线亚洲欧美 | 国语对白一区二区三区 | 亚洲另类xxxx | 极品白嫩的小少妇 | 一边摸一边抽搐一进一出视频 | 色啪网站 | 国产高潮久久久 | 亚洲综合自拍 | 亚洲一区二区日韩欧美 | 女同性做爰全过程 | 日本国产一区 | 天堂久久精品忘忧草 | 91福利网站 | 欧美整片第一页 | 精品国产欧美一区二区三区成人 | 亚洲第一免费播放区 | 国产精品扒开腿做爽爽爽男男 | 久久久久久久久久电影 | 美女精品网站 | 中文字幕 国产 | 国产一级av毛片 | 黄色精品网站 | 国语对白永久免费 | 亚洲国产aⅴ精品一区二区的游戏 | 性色av网 | 丝袜视频一区 | 秋霞午夜视频 | 日本成人一区二区三区 | 97超碰人人澡人人爱学生 | 成人免费视频网址 | 插我一区二区在线观看 | 欧美激情国产精品 | 黄色片怎么看 | 成人资源在线观看 | 精品一区二区免费看 | 精品福利一区二区三区 | 超污巨黄的小短文 | 秋霞福利网 | 亚洲国产精品麻豆 | 国产精品久久中文字幕 | 久久av秘一区二区三区 | 欧美性猛交xxx乱久交 | 成人免费在线视频 | 欧洲成人在线观看 | 尤物网址在线观看 | 9久久9毛片又大又硬又粗 | 久久久久无码精品国产 | 国产婷婷色一区二区三区 | 欧美性猛交一区二区三区精品 | 91干干干 | 中文字幕在线观看免费 | 亚洲视频免费观看 | 亚洲久久在线 | 青青草自拍视频 | 国产女人在线视频 | 亚洲精品综合精品自拍 | www.夜夜爽 | 成人免费看视频 | 影音先锋婷婷 | 中文字幕在线国产 | 中文字幕2018 | 精品一区二区三区在线观看视频 | 国产高潮视频在线观看 | 欧美日韩一级片在线观看 | 伊人久久麻豆 | 亚洲国产中文字幕在线观看 | 日韩av一区在线观看 | 欧美群妇大交乱 | 久久影业 | 黑丝袜av| 欧美精品在线看 | 亚洲欧美中文日韩在线 | 国产sm调教视频 | 国产精久久久久久 | 成人av在线网 | 有码一区| 超碰97观看 | 免费黄网站在线观看 | 国产视频色 | 亚洲色图久久 | 三级视频网 | 免费成人深夜小野草 | 亚洲社区一区二区 | 亚洲国产精品尤物yw在线观看 | 青青草精品视频 | 成人欧美日韩 | 亚洲欧美激情精品一区二区 | av中文字幕不卡 | 欧美一级片在线 | 欧洲最强rapper网站直播 | 少妇高潮一区二区三区四区 | 尤物视频在线播放 | 国产三级国产精品 | 色视频在线播放 | 国产精品av免费观看 | 女同一区 | jizzz18| 泽村玲子av | 国产偷国产偷av亚洲清高 | 三级特黄 | 国产亚洲欧美一区二区 | 亚洲av片一区二区三区 | 日本精品视频在线播放 | 日本欧美国产在线 | 亚洲综合激情另类小说区 | 免费成人美女在线观看. | 公侵犯人妻中文字慕一区二区 | 欧美乱码精品一区二区 | 另类激情| 久久久久久久极品 | 在线v | 亚洲一区二区免费电影 | 麻豆av在线 | 91久久久久久久久久久 | 久久久国产打桩机 | 免费人成年激情视频在线观看 | 男生操女生网站 | 日本一区二区三区电影在线观看 | 国产真实乱偷精品视频 | 中文字幕在线2021 | 乱色精品无码一区二区国产盗 | 无码人妻丰满熟妇啪啪网站 | 亚洲av无码一区东京热久久 | 成年人看的视频网站 | 熟妇高潮精品一区二区三区 | 日本一区二区三区视频在线观看 | 熟妇五十路六十路息与子 | yy6080久久| 羞羞影院体验区 | 日日夜夜免费精品视频 | 精品国产一区二区在线观看 | 日韩av一区二区三区四区 | 国产又黄又猛的视频 | www.香蕉视频.com | 久久久久久国产精品免费 | 成人在线观看免费 | 全国最大色 | 精品国偷自产一区二区三区 | 欧美一区二区三区激情啪啪 | 99精品小视频| 先锋影视av | 日韩欧美网址 | 永久免费在线 | 日本少妇做爰全过程毛片 | 天天草影院 | 国产久草av | 欧美在线一区二区三区 | 日日夜夜狠狠爱 | 日韩av毛片在线观看 | 久久激情视频 | 国产又粗又猛又爽视频 | 欧美第九页 | 欧美激情亚洲综合 | 男女毛片视频 | 成人高清免费观看 | 国产精品麻豆视频 | 国产激情视频在线播放 | 国产精品久久麻豆 | 国产区亚洲区 | 欧美黄色一区二区三区 | 91精品一区二区三区四区 | 色婷婷婷婷 | 久久久久久日产精品 | 免费看黄色一级视频 | 色婷婷国产 | 美女露胸软件 | 久久午夜夜伦鲁鲁一区二区 | 91麻豆网站 | 中文字幕久久精品 | 日本少妇喷水视频 | 欧洲女女同性videoso | 一区二区三区国产精品 | 麻豆一区二区在线 | 欧洲av网站 | 禁漫天堂下载18 | 亚洲一区二区三区日韩 | 日韩天堂在线 | 69影院少妇在线观看 | 国产一级二级三级在线观看 | 亚洲国产精品成人综合在线 | 午夜性激情 | a网址| www久久久 | 国产精品无码成人片 | 台湾男男gay做爽爽的视频 | 亚洲男男网站 | av影视网 | 一级黄色播放 | 久久泄欲网 | 欧美资源网 | 亚洲精品美女在线观看 | 成人av网站在线 | 国产精品人人妻人人爽 | 亚洲综合视频在线观看 | 重口变态虐黄网站 | 亚洲aaaaaa| 成人小视频在线播放 | 蜜桃av一区二区三区 | 亚洲色图偷拍 | 豆花av| 日韩中出在线 | 好吊日在线观看 | 中文字幕免费高 | 午夜九九 | 国产性生活 | 婷婷久久精品 | 亚洲性av| 日批视频免费播放 | 蜜臀久久99精品久久久 | 亚洲va国产天堂va久久 en | 日韩免费网 | 337p嫩模大胆色肉噜噜噜 | 97超级碰碰碰 | 午夜久久剧场 | 国产婷婷综合 | 亚洲怡春院 | 99国产精品久久久久久久成人 | 精品福利一区二区三区 | 成人激情片 | 欧美一级一区 | 不卡一区二区三区四区 | 国产香蕉9| 女同性做受全过程动图 | 蜜桃视频在线观看网站 | 天堂欧美 | 少妇人妻邻居 | 久久噜噜噜 | 日本久久中文字幕 | 亚洲av无码乱码国产精品久久 | 99自拍视频| 最好看的中文字幕国语电影mv | 一区二区中文字幕 | 三级理论电影 | 在线观看一区视频 | 欧美视频| 外国黄色网址 | 美女100%露胸无遮挡 | youjizzcom日本 | 二色av | 欧美一区免费看 | 粗喘呻吟撞击猛烈疯狂 | av网站免费看 | 欧美激情视频在线播放 | 91麻豆精品国产 | 欧美视频在线免费看 | 91美女视频网站 | 国产日韩欧美中文字幕 | 男人的天堂一区二区 | 免费视频一区 | 国产偷自拍视频 | 五月天综合在线 | 少女情窦初开的第4集在线观看 | 91九色视频在线观看 | 丰满少妇在线观看bd | 色妞色| 误杀1电影免费观看高清完整版 | 免费观看av网址 | 九九热免费在线视频 | 91欧美在线 | 人妖videosex高潮另类 | 欧美中日韩在线 | 免费拍拍拍网站 | 中文字幕亚洲欧美日韩在线不卡 | 日韩午夜网站 | 光棍影院手机版在线观看免费 | 强公把我次次高潮hd | 在线成人观看 | 亚洲一区二区激情 | 久久亚洲AV成人无码国产人妖 | 国产一区91 | 欧美三级成人 | 婷婷av一区二区三区 | 国产 日韩 欧美 综合 | 亚洲一区日本 | www男人天堂 | 欧美精品久久久久久久 | 粉嫩aⅴ一区二区三区 | 蜜桃视频一区 | 蜜桃精品在线观看 | 伊人色综合网 | 五月婷婷六月色 | 99在线视频精品 | 亚洲视频中文 | 寡妇激情做爰呻吟 | 亚洲色成人www永久在线观看 | 免费看的一级片 | 欧美激情日韩 | 天天插天天| 国产一区二区高清视频 | 国产欧美中文字幕 | 夜夜嗨一区二区 | 国产无码久久精品 | 一二三区中文字幕 | 久久国产人妻一区二区免色戒电影 | 成人激情站| 欧美a在线播放 | 999精品国产 | 性激烈视频在线观看 | 久久精品4 | 瑟瑟久久| 欧美日韩另类一区 | 这里只有精品视频在线观看 | 亚洲精品va| 国产精品一区二区自拍 | 综合伊人 | av不卡免费在线 | 娇妻玩4p被三个男人伺候电影 | 国产久操视频 | 欧美精品做受xxx性少妇 | av一级网站 | 日本xxxx在线观看 | 丰满人妻一区二区三区免费视频 | 91精品专区| 黄色片免费网站 | 欧美视频一区二区三区四区在线观看 | 中文字幕欧美在线观看 | 国产ts在线观看 | 污片网站 | 亚洲欧美日韩成人 | 久久中文字幕网 | 伦理亚洲 | 女人下边被添全过视频 | 少妇高潮毛片色欲ava片 | 综合色亚洲 | 无遮挡又爽又刺激的视频 | 大奶子av | 精品人妻aV中文字幕乱码色欲 |
